Description

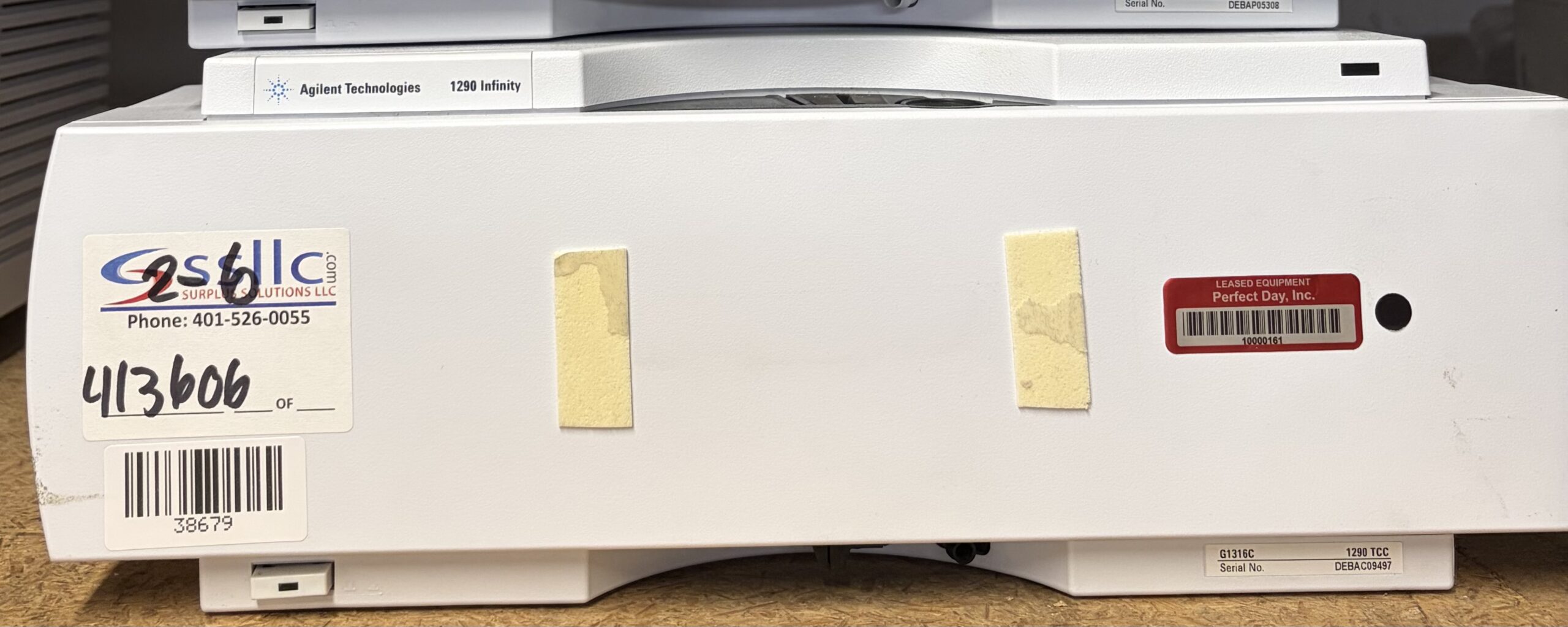

The Agilent 1290 Infinity Thermostatted Column Compartment (G1316C) is a high-precision HPLC/UHPLC column heating and cooling module designed for ultrafast and high-resolution liquid chromatography separations. Operating over a wide temperature range from 10°C below ambient up to 100°C, it provides precise thermal stability to ensure highly reproducible retention times. Equipped with Peltier cooling/heating elements, low-volume heat exchangers, and optional high-pressure column switching valves, the G1316C accommodates up to three 30 cm columns and integrates seamlessly into Agilent 1260 and 1290 Infinity HPLC systems.
Features:
-
Peltier Heating and Cooling: Provides rapid, precise temperature control from 10°C below ambient to 100°C with high thermal stability (+/- 0.05°C).
-
Low-Volume Heat Exchangers: Minimizes peak broadening and extra-column band dispersion, making it ideal for UHPLC applications up to 1200 bar.
-
Flexible Column Capacity: Spacious chamber holds up to three 30 cm columns with fittings and accessories.
-
Integrated Column Identification: RFID technology automatically reads and logs column parameters, usage history, and serial numbers.
-
Quick-Change Valve Options: Supports internal high-pressure switching valves for automated multi-column selection, column flushing, or alternating column regeneration.
-
Leak Detection System: Built-in optical leak sensor provides automated shutdown and alarm alerts to prevent instrument damage.
Specifications:
- Temperature Range: 10°C below ambient to 100°C
- Temperature Stability: +/- 0.05°C
- Temperature Accuracy: +/- 0.5°C
- Warm-Up / Cool-Down Time: 5 mins from ambient to 40°C
- Column Capacity: Up to 3 columns (maximum length 30 cm)
- Pressure Rating: Up to 1200 bar (dependent on heat exchanger)
- Communication Interface: CAN bus to Agilent HPLC stack
- Dimensions (W x D x H): 34.5 x 43.5 x 14.0 cm (13.5 x 17.0 x 5.5 in)
- Electrical Requirements: 100-240 V AC, 50/60 Hz, 320 VA
- Weight: Approx. 10.2 kg (22.5 lbs)
