Description

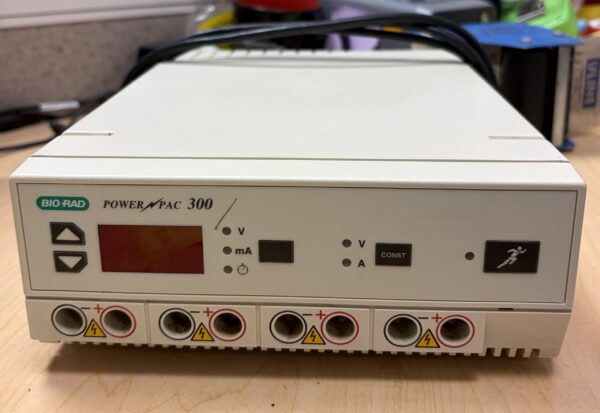

The Bio-Rad PowerPac 300 is an electrophoresis power supply that provides constant voltage or constant current to instruments used in gel electrophoresis and blotting. It sits a step above the PowerPac Basic in both output range and connectivity, offering a higher maximum voltage and current ceiling along with the ability to connect up to four electrophoresis cells in parallel, making it well suited for labs running multiple gels or blots simultaneously. Like other units in the PowerPac line, it automatically switches between constant voltage and constant current modes to protect connected cells from damage, and its compact, stackable housing makes it easy to integrate into crowded lab benches or shared equipment stations. With programmable timer control, a digital display, and built-in safety detection features, the PowerPac 300 is a dependable, general-purpose choice for labs that need more flexibility and capacity than an entry-level power supply can offer, without stepping up to a high-end research-grade unit.
Features:
- Dual Output Modes: Programmable constant voltage or constant current, with automatic crossover to protect the electrophoresis cell
- Multi-Cell Capacity: Up to four electrophoresis cells can be connected in parallel via four recessed banana jack terminals
- Timer Control: Adjustable run timer from 1–999 minutes
- Digital Display: 3-digit LED display for monitoring settings
- Pause Mode: Allows editing of run parameters mid-run
- Safety Detection: Automatic detection of no-load conditions and rapid resistance changes
- Power Failure Recovery: Automatically completes an interrupted run after power is restored (when enabled)
- Stackable, Adjustable Case: Compact housing with flip-down legs for adjustable viewing angle
Specifications:
- Voltage output: 10–300 V, adjustable in 1V increments
- Current output: 4–400 mA, adjustable in 1 mA increments
- Max power: 75 W
- Timer range: 1–999 minutes
- Ripple: <1% @ 300V and 70W
- Line regulation: <1% @ 300V and 70W
- Load regulation: <1% @ 300V for 50% change in output load
- Power input: 100–120/220–240 VAC, 50/60Hz
- Operating temperature: 0–40°C
- Humidity: 0–95%, non-condensing
- Weight: ~2.42 lb
