Description

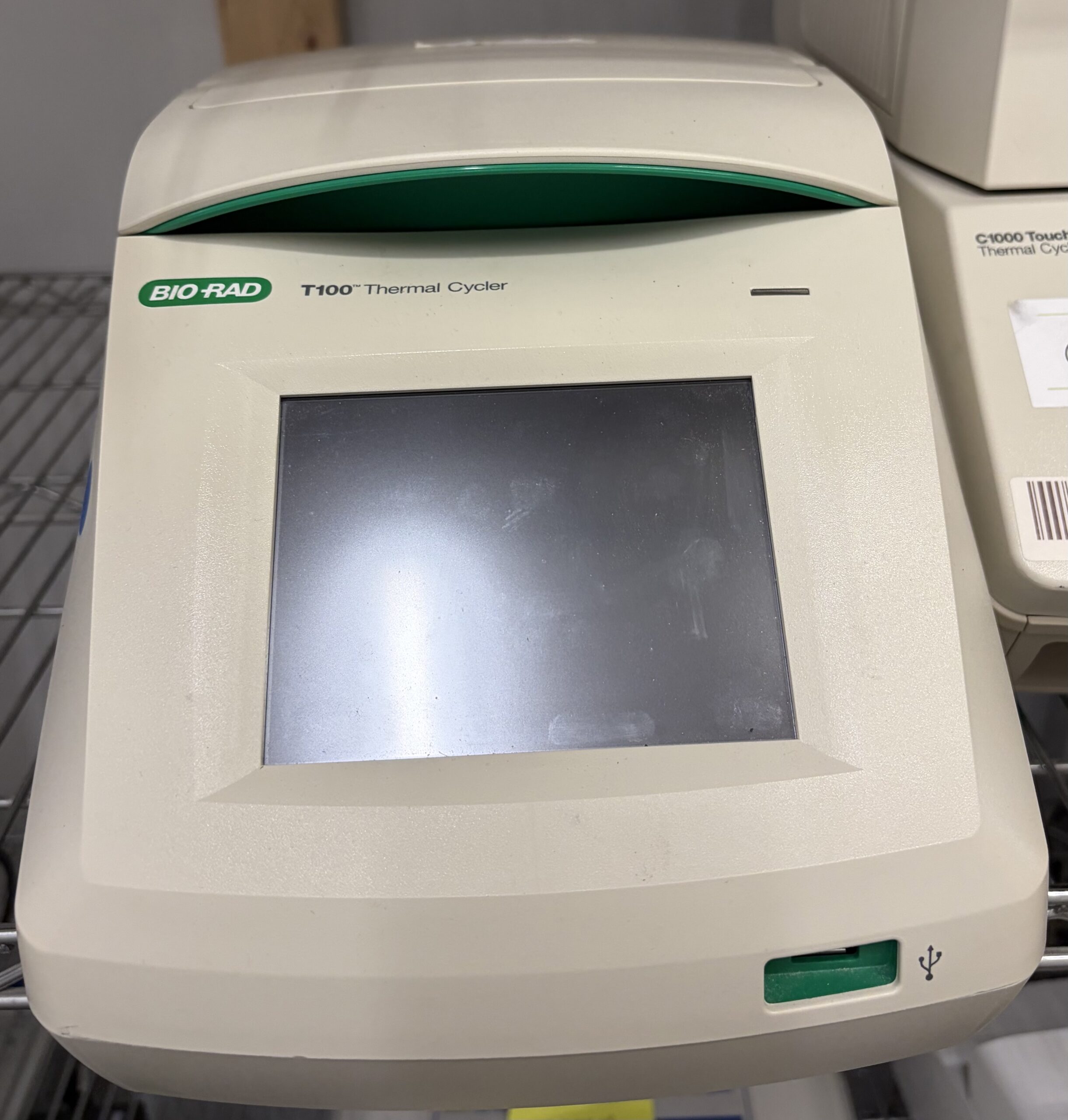

The Bio-Rad T100 Thermal Cycler is a compact, 96-well PCR instrument designed for nucleic acid amplification and routine molecular biology workflows. Featuring an intuitive touch-screen interface and a thermal gradient block, it allows users to optimize PCR reactions in a single run by testing multiple temperatures simultaneously. Its small footprint, reliable thermal performance, and user-friendly programming make it a core workhorse for academic, clinical, and industrial research laboratories.
Features:
-
Thermal Gradient Technology: Allows optimization of annealing temperatures across an 8-temperature gradient in a single run.
-
Intuitive Touchscreen Interface: Large 5.7-inch color display for easy protocol creation, editing, and execution.
-
Self-Adjusting Heated Lid: Compatible with standard 0.2 mL tubes, tube strips, and 96-well PCR plates without manual adjustments.
-
USB Data Transfer: Easily import, export, and save protocols or run logs using a standard USB flash drive.
-
Compact Footprint: Space-saving design that integrates easily into crowded lab spaces.
-
Personalized User Profiles: Organize and secure protocols with custom user folders and password protection.
Specifications:
- Sample Capacity: 96 x 0.2 mL tubes, 12 x 8-tube strips, or 1 x 96-well plate
- Block Format: 96-well block with thermal gradient
- Maximum Ramp Rate: 4°C/sec
- Average Ramp Rate: 2.5°C/sec
- Temperature Range: 4°C to 100°C
- Temperature Accuracy: +/- 0.5°C of programmed target
- Temperature Uniformity: +/- 0.5°C well-to-well within 30 sec of clock start
- Gradient Temperature Range: 30°C to 100°C
- Gradient Operational Range: 1°C to 24°C across the block
- Heated Lid Temperature: Up to 110°C
- Program Memory: 500 typical programs on board (unlimited via USB)
- Dimensions (W x D x H): 26 x 47 x 23 cm (10 x 18.5 x 9 in)
- Electrical Requirements: 100–240 V, 50–60 Hz, 400 W max
- Weight: 9 kg (20 lbs)
