Description

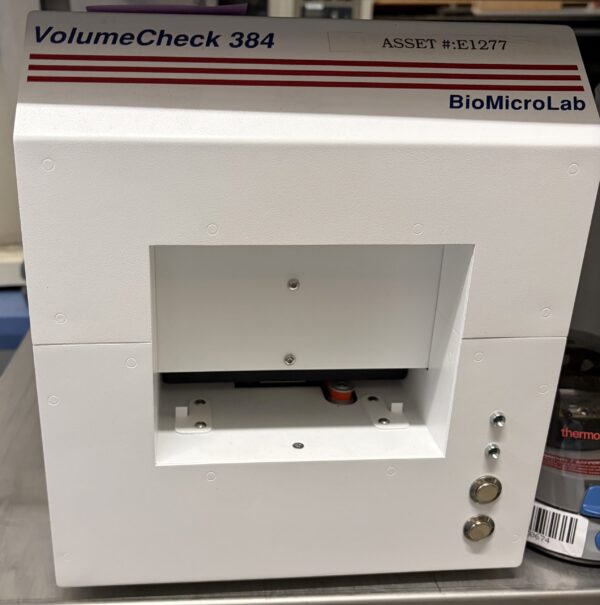

The BioMicroLab VolumeCheck 384 is a high-speed, non-contact liquid volume detection system designed to measure sample levels in 96-well, 384-well, and 24-well microplates and tube racks. Utilizing advanced acoustic/ultrasonic sensor technology, the system rapidly scans an entire plate without touching or contaminating the samples. It is widely used in high-throughput biobanks, screening labs, and compound management facilities to verify sample volumes, detect missing samples, and quality-check liquid handler dispensing before downstream processing.
Features:
-
Non-Contact Ultrasonic Sensing: Measures liquid levels without tip immersion or sample contact, eliminating cross-contamination and reagent waste.
-
Rapid Plate Scanning: Scans an entire 384-well plate in approximately 1 minute (and 96-well plates in under 45 seconds).
-
Wide Labware Compatibility: Compatible with standard SBS-format 24, 96, and 384-well microplates, deep-well plates, and uncapped tube racks.
-
Volume Verification & QC: Identifies over-filled, under-filled, or empty wells, outputting precise liquid volume data for liquid handler calibration and inventory control.
-
Intuitive Software: Includes standalone control software with customizable labware definitions, volume calibration curves, and seamless LIMS data export (CSV/Excel).
-
Automation Ready: Compact benchtop footprint with a robotic-accessible plate nest for integration into automated workstations.
Specifications:
- Detection Method: Non-contact ultrasonic sensor
- Plate Format Compatibility: 24, 96, and 384-well SBS microplates and tube racks
- Volume Detection Range: 10 µL to 1000 µL (dependent on labware geometry)
- Accuracy/Precision: +/- 5% (typical, calibration dependent)
- Scan Speed: ~45 sec (96-well)/~60 sec (384-well)
- Data Output: CSV, TXT, Excel, XML (LIMS integration ready)
- Interface/Connection: USB to external host PC
- Dimensions (W x D x H): 30.5 x 43.2 x 28.0 cm (12.0 x 17.0 x 11.0 in)
- Electrical Requirements: 100–240 V AC, 50/60 Hz
- Weight: Approx. 11.3 kg (25 lbs)
