Description

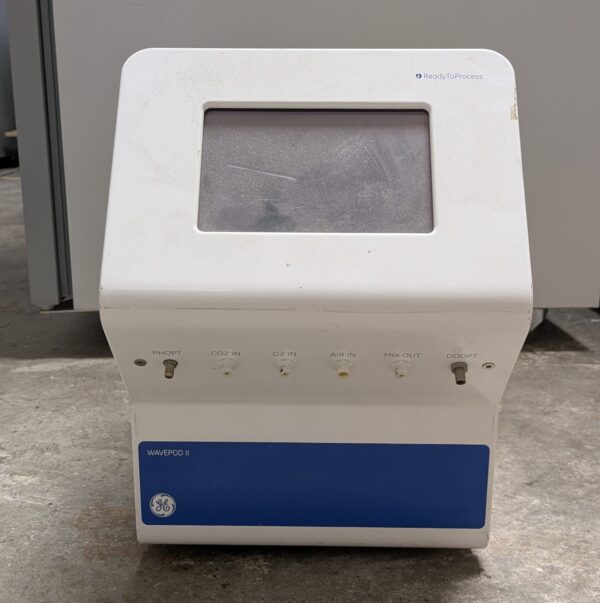

Take your WAVE Bioreactor culture control to the next level. The WAVEPOD II integrated controller from GE merges precise monitoring, automation, and flexibility to manage critical cell culture parameters inside single‑use Cellbag bioreactors, part of GE’s ReadyToProcess™ platform. With modular control over pH, dissolved oxygen (DO), CO₂, and O₂, plus a bright touchscreen interface, you get consistent, scalable performance from R&D through production.
- Modular control: choose from modules for pH (using the optical pHOPT sensor), DO, CO₂, O₂, airflow.
- Integrated touchscreen UI: large color touch display for intuitive setup, real‑time monitoring, and alarms.
- Real‑time data acquisition: UNICORN DAQ 1.0 software enables monitoring multiple bioreactors at once, secure result files, scale‑up consistency.
- Optical sensors: preinstalled single‑use optical pH sensor (pHOPT) (range ~6‑8), and optical DO sensor (DOOPT). These improve sterility and reduce risk of contamination.
Specifications:
- Operating volumes supported: 0.1 L up to ~25 L in WAVE Bioreactor 20/50 system
- Power requirements: 100‑120 V or 220‑240 V, 50‑60 Hz; ~200 VA power consumption
- Ambient operating temperature: ~4‑40 °C
- Acoustic noise: < 60 dB(A)
- Dimensions (HxWxD): ~393 × 278 × 404 mm
- Weight: ~12.6 kg
- Ingress protection: IP32 (resistant to moderate external intrusion)
