Description

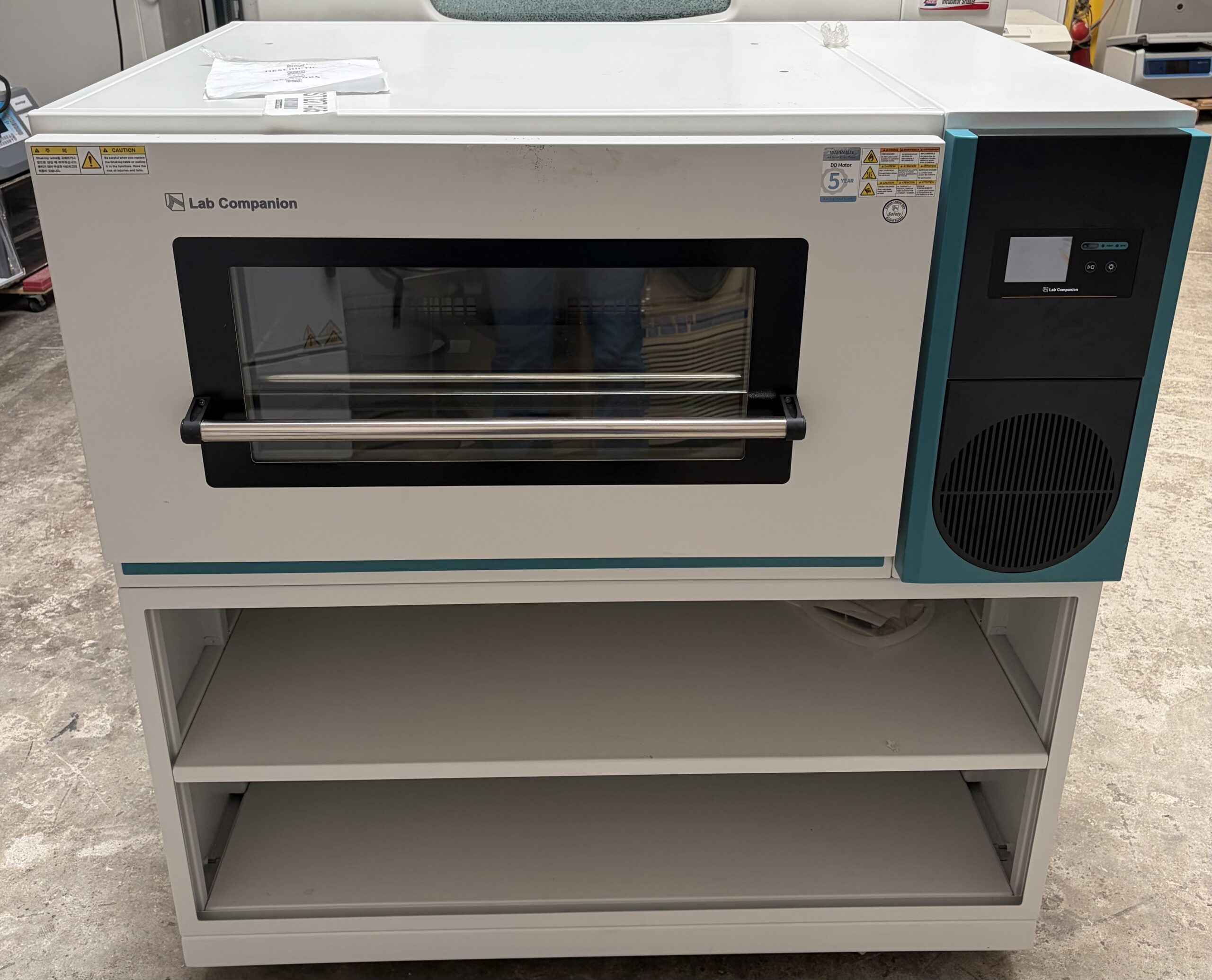

The Jeio Tech ISS-7100 is a large-capacity, triple-stackable incubated shaker capable of temperature control up to 80°C and shaking speeds up to 400 rpm, supporting a range of experimental applications across three operating modes: Temperature & Shaking, Temperature only, or Shaking only. Its 198 L chamber can accommodate six 4 L flasks or thirty-nine 250 mL flasks, and capacity can be tripled by stacking three units together, making it a strong choice for labs needing to maximize limited space while still maintaining high rpm performance even when stacked. The unit features a lift-up, glide-up door design that stays open for hands-free sample handling, and uses an ideal Direct Drive (DD) brushless motor paired with a triple cam system to support heavy loads with quiet, maintenance-free operation while delivering high torque at high speeds and smooth rotation. A best-effort run function intelligently manages rpm to maintain shaking even when workload exceeds capacity, automatically adjusting speed in cases of unbalanced load placement or vibration from an unstable floor.
Features:
- Large-Capacity Stackable Design: Triple-stackable chamber supporting up to 80°C temperature and 400 rpm shaking speed
- Hands-Free Door Access: Lift-up opening door slides out platform for easy sample handling and stays open during loading/unloading
- Direct Drive Brushless Motor: Triple cam system delivers high torque, quiet operation, and minimal maintenance
- Best-Effort Run Function: Automatically adjusts shaking speed to compensate for excessive or unbalanced workloads
- Adjustable Shelving: Two adjustable-height shelves allow static incubation, increasing usable storage capacity
- Corrosion-Resistant Interior: Stainless steel chamber with a built-in electrical outlet and safety cover
- Easy-Access Drain System: Quick disconnect valve simplifies cleanup of spills
- Data Connectivity: Built-in RS-232 and USB ports support external control and data collection
- Intuitive Touch Display: Color touchscreen with countdown timer up to 999 hours 59 minutes
- Safety Monitoring: Automatic run resumption after power interruption, temperature/speed deviation alarms, and over-current protection
Specifications:
- Volume: 198 L (7.1 cu. ft.)
- Platform (W x D): 755 x 520 mm (29.7 x 20.5 in.)
- Interior (W x D x H): 809 x 624 x 393 mm (31.9 x 24.6 x 15.5 in.)
- Exterior (W x D x H): 1310 x 996 x 755 mm (51.6 x 39.2 x 29.7 in.)
- Net weight: 365 kg (804.7 lbs)
- Temperature range: 10°C above ambient (15°C to 40°C) up to 80°C
- Orbital diameter: 19.1 mm / 25.4 mm
- Control type: Digital, with microprocessor PID control
- Electrical: Max 120V, 60Hz
- Refrigeration: Not refrigerated (refrigerated version sold separately as ISS-7100R)
