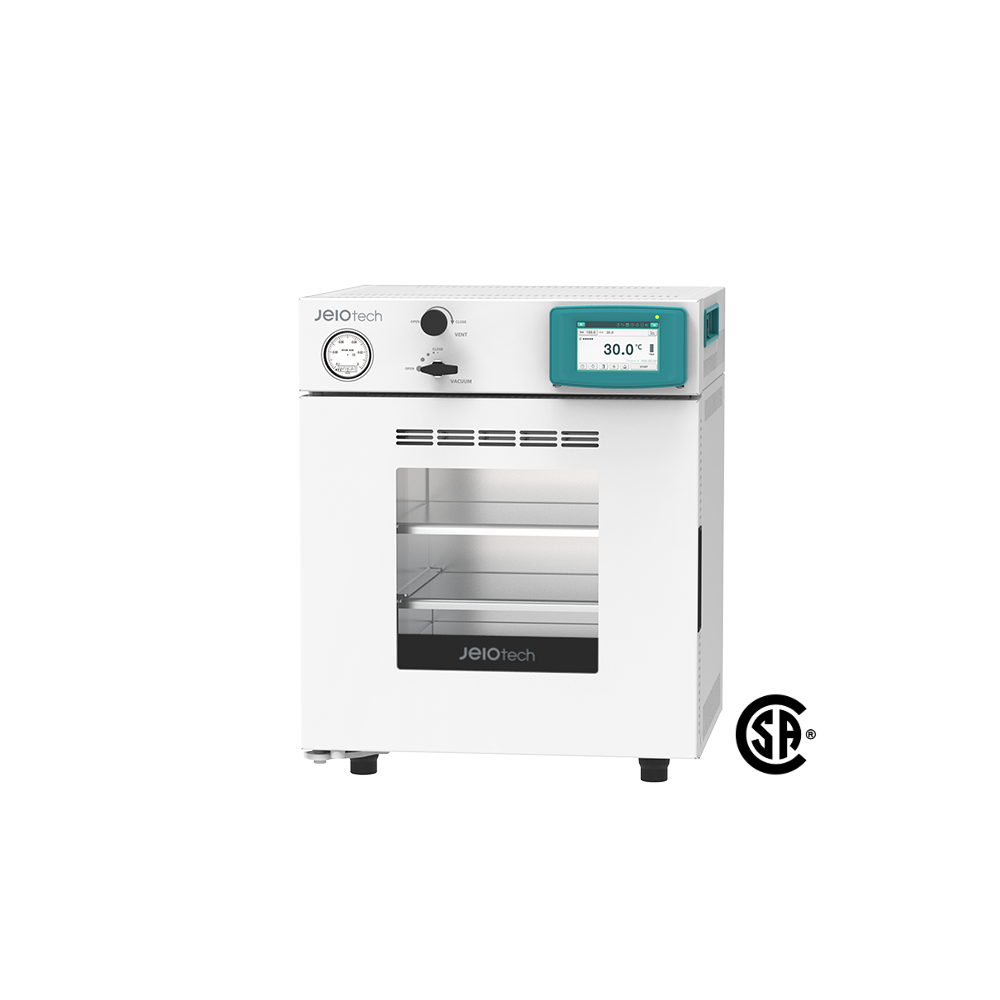

JeioTech OV4-30 Vacuum Oven (28L), 120V, 60Hz, US Plug Vacuum Oven

Description

• • • • Structural Functional Features
        • Wide temperature range that can be controlled up to 250°C.
        • Improved temperature distribution. (±1.5°C at 100°C)
        • 3-point temperature calibration, high temperature accuracy over a wide temperature range.
        • Inner stainless steel and aluminum shelves provide excellent corrosion resistance and clean maintenance.
        • Protects equipment from overcurrent and over temperature through safety circuits.
        • Vacuum line and release line are separated and convenient to use.
        • The display is mounted at the top, minimizing floor sizerequirement.

        Use Convenience Features

        • When a vacuum is formed and maintained, the toughened glass is attached to the gasket, so it is kept confined for long-time repeated use.
        • Save and use 3 frequently used temperatures.
        • PC connection using RS-232 port and USB port.
        • Excellent visibility and viewing angle due to application of 5-inch large LCD.
        • Wait On/Off timer. (up to 999 hours 59 minutes)
        • Toughened glass viewing window for easy internal viewing.
        • Microprocessor PID method for precise temperature control.
        • Automatic restart as it was operated after power recovery.
        • Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (when purchased LC GreenBox)
        • Microprocessor PID method for precise temperature control.

        Outstanding Safety

        • Door structure including buffer system allows for internal pressure release through upper and lower ventilation holes when stable vacuum is formed/maintained and when there is an internal explosion.
        • Polycarbonate safety cover provided in case of toughened glass breakage.
        • 12 events is recorded in case of door open, error, and etc.
        • Top-rated overheating protection system. (registration 10 – 0397583)
        • Over temperature limit function.
        • Safe product surface, even when operated at upper temperature.
        • Malfunction prevented by controller lock function.
        • Alarm if set temperature deviation outside of acceptable range.

        Vacuum Oven Use Configuration

        • It is recommended to use the cold trap bath on the vacuum line to protect the weak vacuum pump against water/solvent or to supply dry air to the sample.
