Description

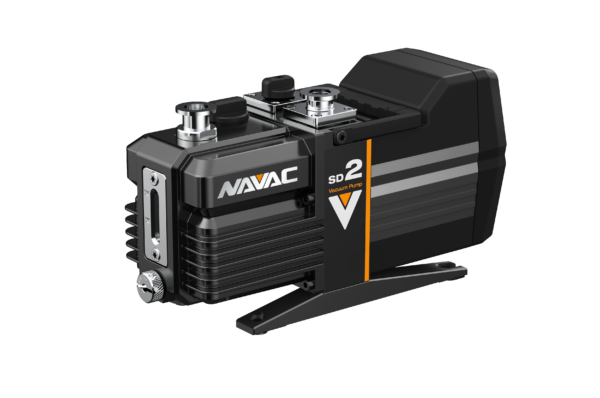

ShieldDrive is a dual-stage, oil-sealed rotary vane vacuum pump with a Permanent Magnet Motor optimized for efficiency and leak-free operation. It employs static sealing with a mechanical shield and magnetic coupling designs, offering complete protection against oil migration. Ideal for laboratory use, its robust design guarantees leak-free performance in critical applications.
- Corrosion-Resistant: Designed with a proprietary coating to perform in corrosive applications.
- Leak-Free Operation: Magnetic shield design enhances the connection between the motor and pump to ensure leak-free operation.
- Brushless DC Technology: Low noise. Energy-saving.
- Anti Suck Back Design: Protecting vacuum system from oil contamination during an unexpected shutdown.
- Eco Mode: The pump is equipped with a variable-frequency motor, and the Eco Mode allows the pump to run at peak efficiency, optimizing both energy consumption and noise.
- Gas Ballast: Adjustable gas ballast allows for the different requirements of condensable gas to be exhausted.
- Oil: Proprietary mineral oil included with the pump. All models can also be prepped with high-performance PFPE
Technical Specifications
- Pumping Speed (50 Hz): 2.5 m³/h (1.5 CFM)
- Pumping Speed (60 Hz): 2.5 m³/h (1.5 CFM)
- Ultimate Pressure without Gas Ballast:
1.5 × 10⁻³ Torr
2.0 × 10⁻³ mbar - Ultimate Pressure with Gas Ballast:
2.3 × 10⁻² Torr
3.0 × 10⁻² mbar - Cooling Method: Air
- Inlet / Exhaust: KF16 / KF16
- Noise Level: 50 dB(A)
- Communication: None
- Oil Type: Hydrocarbon
- Recommended Oil: NPO46
- Oil Capacity: 0.3 L
- Motor Power: 0.25 kW (0.33 HP)
- Power Supply: Single Phase, 115 V, 60 Hz
- Protection Rating: IP44
- Weight: 22 lb (10 kg)
- Dimensions: 12 × 5 × 7 in (310 × 114 × 168 mm)
