Description

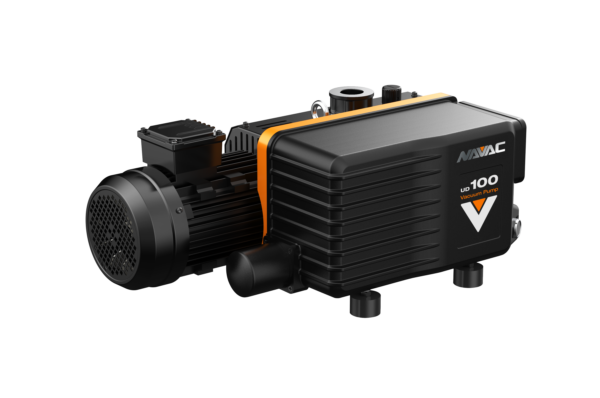

UniDrive is a single-stage, oil-sealed rotary vane vacuum pump optimized for applications with high moisture content. Engineered with performance in mind, UniDrive offers unmatched reliability for industries such as food processing and packaging.
- Integrated Oil Mist Filter: High-efficiency oil mist filters prevent oil vapor from exhausting into the equipment space and smoking while also prolonging the service life.
- Gas Ballast: Adjustable gas ballast allows for the different requirements of condensable gas to be exhausted
- Proprietary Motor: In-house designed and manufactured AC motor provides longevity and robust operation
Technical Specification:
- Pumping Speed (50 Hz): 100 m³/h (59 CFM)
- Pumping Speed (60 Hz): 120 m³/h (70 CFM)
- Ultimate Pressure without Gas Ballast:
7.5 × 10⁻² Torr
1.0 × 10⁻¹ mbar - Ultimate Pressure with Gas Ballast:
1.5 × 10⁻¹ Torr
2.0 × 10⁻¹ mbar - Cooling Method: Air
- Inlet / Exhaust: G 1-1/4″ / G 1-1/4″
- Noise Level: 67 dB(A)
- Communication: None
- Oil Type: Hydrocarbon
- Recommended Oil: NPO68
- Oil Capacity: 2.5 L
- Motor Power: 3 kW (4.02 HP)
- Power Supply: Three Phase, 380–415 V @ 50 Hz, 220–230/460 V @ 60 Hz
- Protection Rating: IP54
- Weight: 159 lb (72 kg)
- Dimensions: 28 × 16 × 13 in (704 × 406 × 330 mm)
