Description

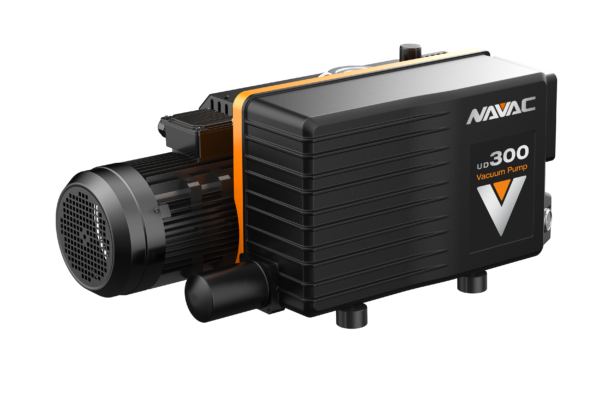

UniDrive is a single-stage, oil-sealed rotary vane vacuum pump optimized for applications with high moisture content. Engineered with performance in mind, UniDrive offers unmatched reliability for industries such as food processing and packaging.
- Integrated Oil Mist Filter: High-efficiency oil mist filters prevent oil vapor from exhausting into the equipment space and smoking while also prolonging the service life.
- Gas Ballast: Adjustable gas ballast allows for the different requirements of condensable gas to be exhausted
- Proprietary Motor: In-house designed and manufactured AC motor provides longevity and robust operation
Technical Specification:
- Pumping Speed (60 Hz): 300 m³/h (176 CFM)
- Ultimate Pressure without Gas Ballast:
7.5 × 10⁻² Torr
1.0 × 10⁻¹ mbar - Ultimate Pressure with Gas Ballast:
1.5 × 10⁻¹ Torr
2.0 × 10⁻¹ mbar - Cooling Method: Air
- Inlet / Exhaust: G2″ / G2″
- Noise Level: 79 dB(A)
- Communication: None
- Oil Type: Hydrocarbon
- Recommended Oil: NPO68
- Oil Capacity: 8 L
- Motor Power: 7.5 kW (10.06 HP)
- Power Supply: Three Phase, 460 V, 60 Hz
- Protection Rating: IP54
- Weight: 474 lb (215 kg)
- Dimensions: 41 × 21 × 17 in (1034 × 538 × 434 mm)
