Description

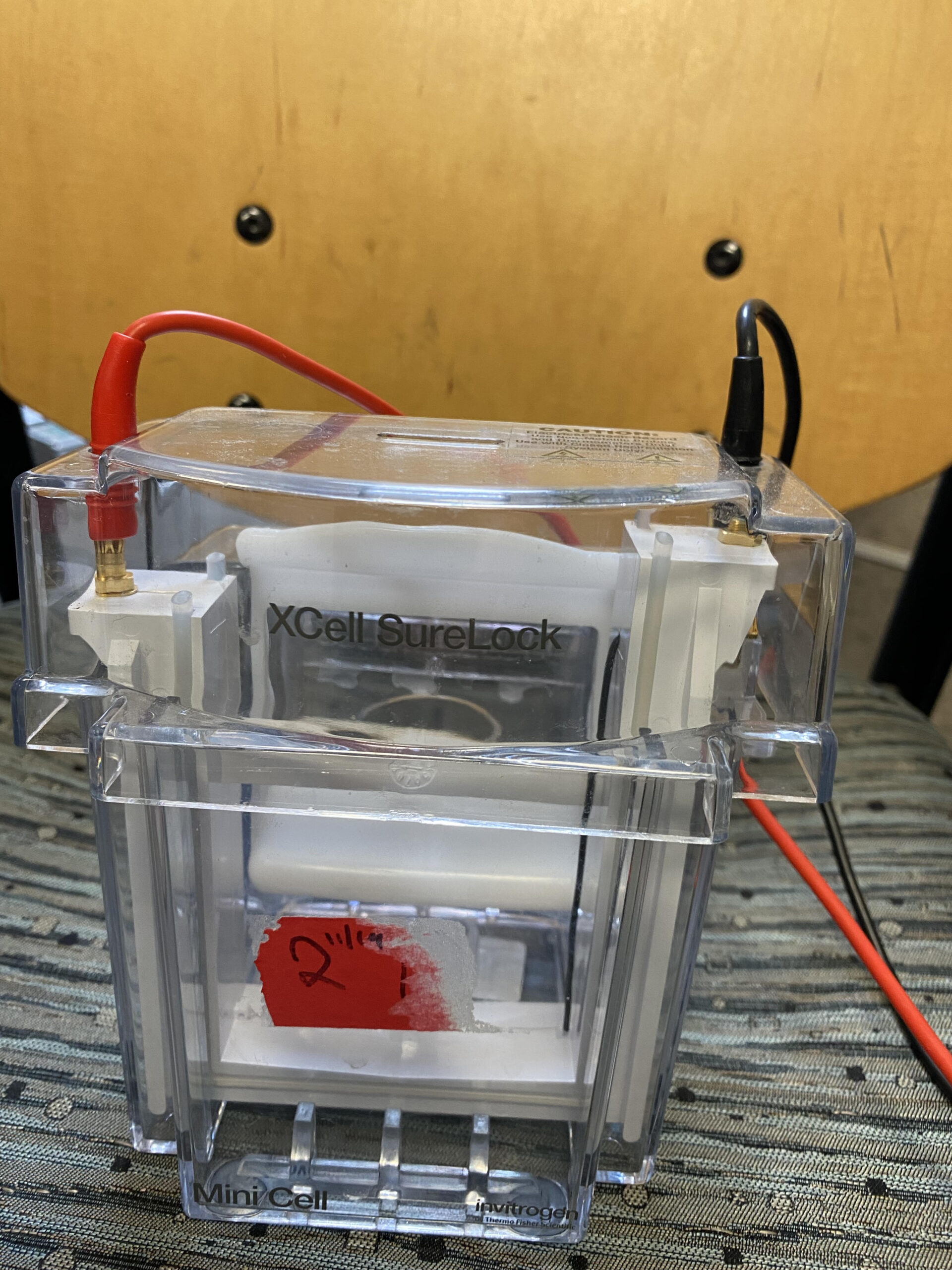

The XCell SureLock Mini-Cell Electrophoresis System is a vertical mini-protein gel system designed to run up to two mini gels quickly without clamps or grease
Core Specifications
• Gel Capacity: Up to 2 mini-gels per run (8 x 8 cm, 1.0/1.5 mm thickness)
• Buffer Requirements: Upper chamber: 200 mL; Lower chamber: 600 mL
• Dimensions: 14 x 13 x 16 cm
• Material: Polycarbonate construction with a stainless-steel cathode bar and platinum wire anode
• Electrical Limits: Maximum 500 VDC / 75 W
• Compatibility: All Invitrogen mini precast gels (such as Novex, NuPAGE, Bolt) and SureCast handcast gels
Key Features
• Gel Tension Wedge: A built-in locking mechanism that generates an even horizontal force to clamp-free seal the cassette assembly leak-free.
• Upgraded Core: Features a robust stainless-steel cathode core allowing for 10–25% faster run times compared to older legacy designs.
• Blotting Capability: Can convert into a wet transfer system using the optional XCell II Blot Module for Western, Southern, and Northern transfers requiring less than 200 mL of transfer buffer.
