Description

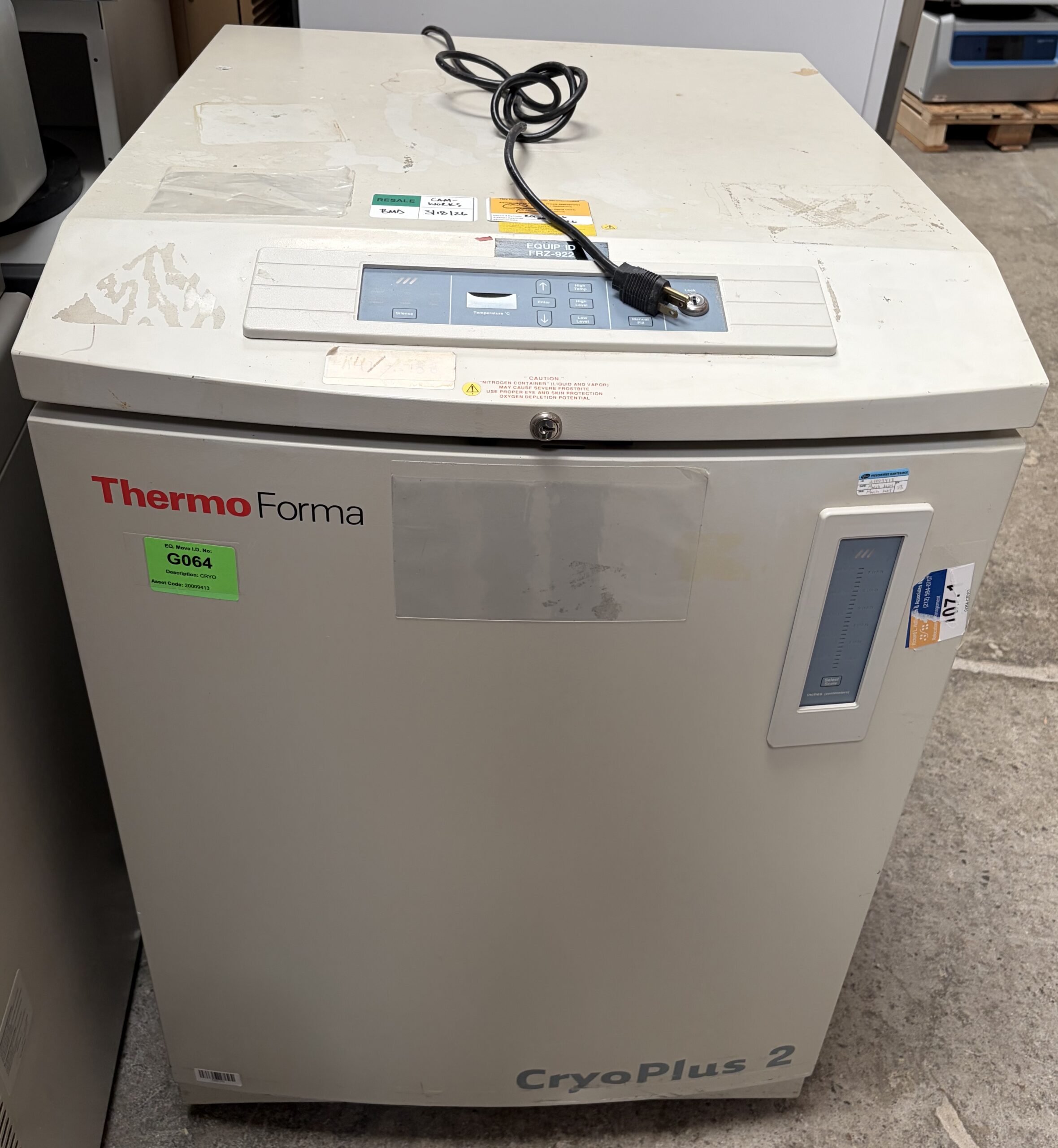

The Thermo Forma CryoPlus 2 (Model 7402) is a high-capacity liquid nitrogen (LN2) storage system engineered for long-term cryopreservation of biological specimens in liquid or vapor phase. Featuring a 200 L total LN2 capacity, it holds up to 13,000 standard 2.0 mL vials. Equipped with a microprocessor control panel, automatic filling, and continuous liquid level monitoring, the unit maintains temperature stability below -130°C in vapor phase and -196°C when fully immersed, ensuring maximum sample integrity for biobanks and research facilities.
Features:
-
Microprocessor Control: Top-mounted interface provides continuous status display, precise level monitoring, and programmable auto-fill settings.
-
Dual Phase Storage: Versatile design supports liquid phase immersion (-196°C) or vapor phase storage (-130°C or colder) to prevent cross-contamination.
-
Counterbalanced Lid: Vacuum-insulated lid with a sleeve gasket minimizes ice buildup and facilitates smooth opening and closing.
-
Safety & Alarm Systems: Audio and visual alarms trigger for high temperature, low/high LN2 level, sensor fault, and lid open status, complete with remote alarm contacts.
-
Heavy-Duty Construction: Stainless steel chamber interior with a powder-coated exterior for maximum durability and chemical resistance.
-
Integrated Step Pad: Built-in folding step allows safe and convenient access to the chamber interior.
Specifications:
- LN2 Capacity: 200 Liters
- Vial Capacity (2.0 mL): 13,000 (100-well racks) / 10,400 (81-well racks)
- Rack Capacity: 10 vertical racks (13 boxes per rack)
- Static Evaporation Rate: 5.0 Liters / day
- Inner Diameter: 24.0 in (61.0 cm)
- Usable Interior Height: 27.5 in (69.9 cm)
- Exterior Dimensions (W x D x H): 35.0 x 37.0 x 41.0 in (88.9 x 94.0 x 104.1 cm)
- Electrical Requirements: 120 V, 50/60 Hz, 2 A
- Static Holding Time: Up to 40 days
- Shipping Weight: Approx. 315 lbs (143 kg)
