Description

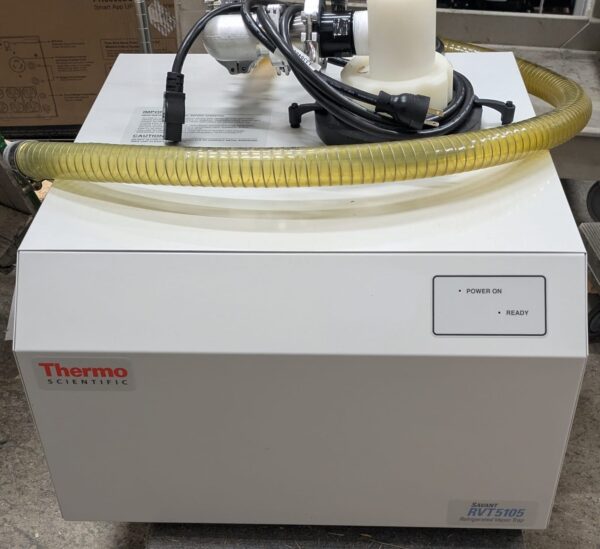

The Thermo Scientific Savant RVT5105 is a high-performance refrigerated vapor trap designed to condense and capture a wide variety of solvent vapors before they can contaminate or degrade vacuum pump oil. Reaching operating temperatures as low as -105°C, it provides deep cold trapping capability suitable for demanding laboratory workflows including SpeedVac concentration, freeze drying, and vacuum distillation. The sealed refrigeration system eliminates the need for consumable coolants such as dry ice or acetone, reducing ongoing operating costs and simplifying day-to-day use. With a 4-liter capacity and rapid cooldown performance, the RVT5105 is a reliable and low-maintenance solution for protecting vacuum systems in high-throughput lab environments.
Features:
- Deep Cooling to -105°C: Two 1/3 HP compressors cool the trap to operating temperature in less than 40 minutes, minimizing wait time before use.
- Sealed Refrigeration System: Eliminates the need for dry ice or acetone coolants, reducing cost and hazardous material handling.
- 4-Liter Glass Condensation Flask: Easy-to-remove wide-mouth glass flask allows for convenient solvent collection and quick, mess-free draining.
- Rapid Cooldown Performance: Quickly reaches operating temperature to minimize delays in sample processing workflows.
- Illuminated Temperature Graph with Endpoint Indication: Visual indicator confirms when the unit has reached its target operating temperature.
- LED Status Indicators: Amber LED indicates power-on status; green LED signals that operating temperature has been reached.
- Simple On/Off Operation: Controlled by a single I/O switch for straightforward, no-fuss operation.
- Brushed Stainless Steel & Powder-Coated Exterior: Durable construction designed to withstand the rigors of regular laboratory use.
Specifications:
- Operating Temperature: -105°C
- Capacity: 4 L
- Voltage: 115V, 50/60 Hz, 13A
- Dimensions (L × W × H): 18.3 × 24.1 × 24 in. (465 × 612 × 610 mm)
- Weight: 150 lbs (68 kg)
