Description

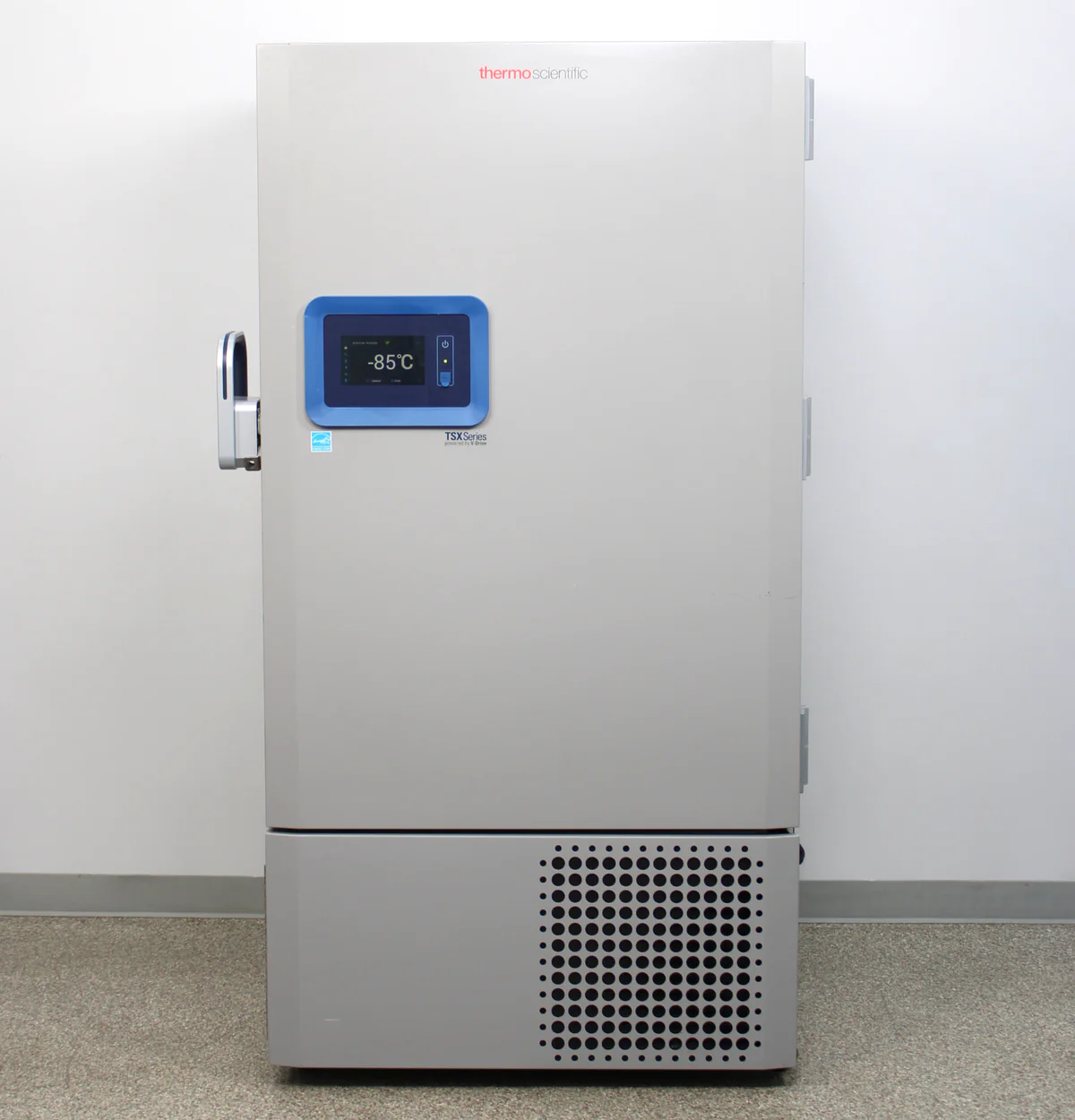

“The Thermo Scientific TSX60086A is an ENERGY STAR-certified upright ultra-low temperature (ULT) freezer from the TSX Series, designed for reliable, sustainable, and energy-efficient long-term storage of biological and pharmaceutical samples. Built around Thermo Scientific’s V-drive compressor technology, the unit adapts its cooling output to lab usage patterns, reducing energy consumption without compromising sample protection. With a 28.8 cu. ft. (816 L) capacity and 600 2″” cryobox storage, the TSX60086A is well suited for laboratories, research institutions, and biobanks with high sample throughput and long-term storage needs.
Features:
- V-drive variable-speed compressor: Automatically adjusts compressor speed based on usage patterns (e.g., door openings vs. periods of stability), cutting energy and HVAC costs while maintaining consistent internal temperatures.
- Vacuum Insulation Panels (VIP) + water-blown polyurethane foam insulation: Provides superior thermal efficiency and temperature recovery, while remaining compliant with EPA SNAP and EU F-Gas sustainability standards through the use of natural refrigerants.
- ENERGY STAR certification: Confirms the unit meets high standards for energy efficiency, helping to lower long-term operating costs compared to non-certified ULT freezers.
- Touch-screen LCD control interface: Provides straightforward monitoring and adjustment of temperature settings, alarms, and system status without requiring specialized training.
- Thermo Scientific DeviceLink connectivity: Enables real-time wireless monitoring of freezer status and sample temperature via mobile and web applications, with cloud-stored data and alarm notifications sent directly to users.
- Stainless steel interior with 3 shelves and 12-rack capacity: Supports organized storage of up to 600 2-inch cryoboxes (60,000 x 2 mL vials), with each shelf rated to hold up to 245 lb (111 kg).
- Security features: Includes alarm settings and padlock-compatible doors to protect valuable or sensitive sample inventories from unauthorized access.
- Low-noise, low-heat-emission operation: Quiet enough to be placed directly in the lab rather than a separate equipment room, while also reducing HVAC load from waste heat.
Specifications:
- Temperature Range: -50°C to -86°C
- Capacity: 28.8 cu. ft. (816 L)
- Box Capacity: 600 x 2″” cryoboxes
- Vial Capacity: 60,000 x 2 mL vials
- Shelves: 3 (245 lb / 111 kg capacity each)
- Rack Capacity: 12
- Insulation: Vacuum Insulation Panels (VIP) + water-blown polyurethane foam (SNAP-compliant)
- Interior Material: Stainless steel
- Compressor: V-Drive (variable speed)
- Refrigerant: R290 (1st stage), R170 + R290 mix (2nd stage)
- Display: Touch-screen LCD
- Defrost: Manual
- Connectivity: Thermo Scientific DeviceLink (WPA2-PSK, WPA-PSK, WEP, WPA2-EAP-PEAP, WPA-EAP-PEAP)
- Power: 115V, 60Hz, 8.5/15 A
- Plug Type: NEMA 5-15
- Exterior Dimensions (D x W x H): 37.6 x 39.6 x 78 in (95.5 x 100.6 x 198.1 cm)
- Interior Dimensions (D x W x H): 28.3 x 34.4 x 51.2 in (71.9 x 87.3 x 130.1 cm)
- Shipping Weight: 790 lb
“
